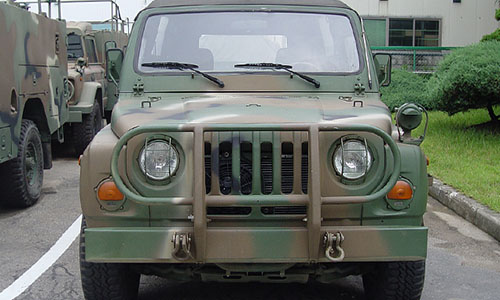

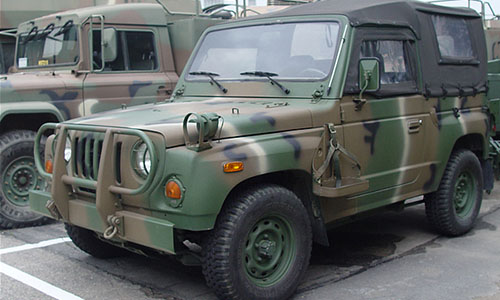

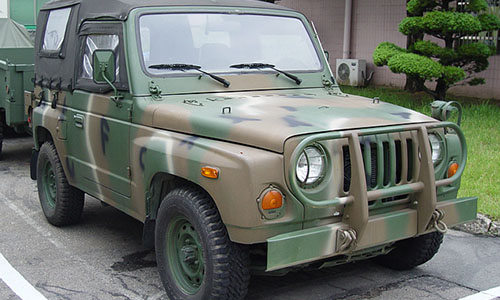

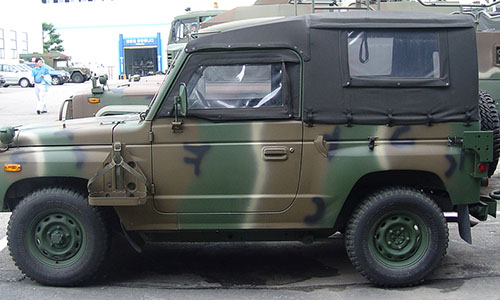

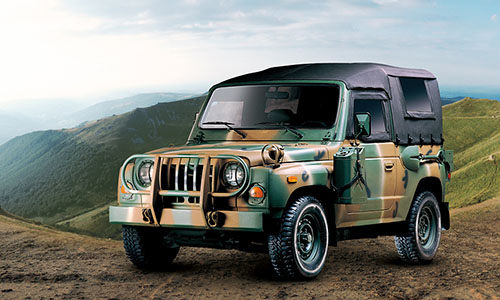

KM420_쩌Ton 4x4 Utility Vehicle
- Introduction
- The KM420, 1/4 ton Utility Vehicle has an independent suspension at front, shifting gear from 4x2 to 4x4 wheel drive, power steering, AM/FM radio, and steel door. All built on a rugged ladder frame chassis that meets the latest U.S. safety standards, KM420 provides a solid capabilities for military operations in all weather and terrain conditions.
- specifications
- < Engine & Power Train >
- �뼳 91 hp 2.0 liter diesel engine
- �뼳 5 Speed manual transmission and 2 Speed transfer case
- �뼳 2WD-4WD Auto-locking hubs
- �뼳 Limited slip differential
- < Utility >
- �뼳 Seats for 6 soldiers
- �뼳 Soft-top canvas
- < Safety >
- �뼳 Rugged ladder frame chassis with front and rear crumple zones
- �뼳 Energy absorbing steering column
- �뼳 Door impact beams and a T-bar support front sub-frame
- < KM420R (Right Hand Drive) >
- �뼳 The same specifications and performances of KM420 (LHD)
- <Type >
- - Overall length 4,000mm
- - Overall width 1,745mm
- - Overall height 1,915mm
- - GVW 2,150kg
- - Max. speed 115km/h
- - Max. Honsepower 91@4,000(ps@rpm)
- - Max. Torque 20.5@2,000(kg'm@rpm)
- - Gradeability 60%
- - Fording Depth 510mm
- - Ground Clearance 220mm
- - Min. Turning Radlus 5.14m
- - Range 550km
